What materials do you use to ensure the durability of the undercarriage?

Quality starts with materials. We use high-strength 50MnB, 40Mn2 or 35MnB alloy steel for critical components. Specifically speaking, sprockets, idler shells and steel tracks are made of 35MnB. This type of steel provides a balance between wear resistance and tensile toughness. Roller shells are made of 50MnB to maximize the wear resistance. All key contact positions of the parts undergo rigorous heat treatment and deep induction hardening (HRC 52-58) to maximize structural integrity and wear resistance in harsh environments.

Can you customize a track system for our specific machine and terrain?

Absolutely. We specialize in custom solutions for load capacities from 0.5 to 120 tons. Our technical team optimizes the chassis design based on your equipment weight, hydraulic requirements, traveling speed and working conditions (e.g., abrasive rock, swampy mud, or steep slopes) to ensure 100% compatibility.

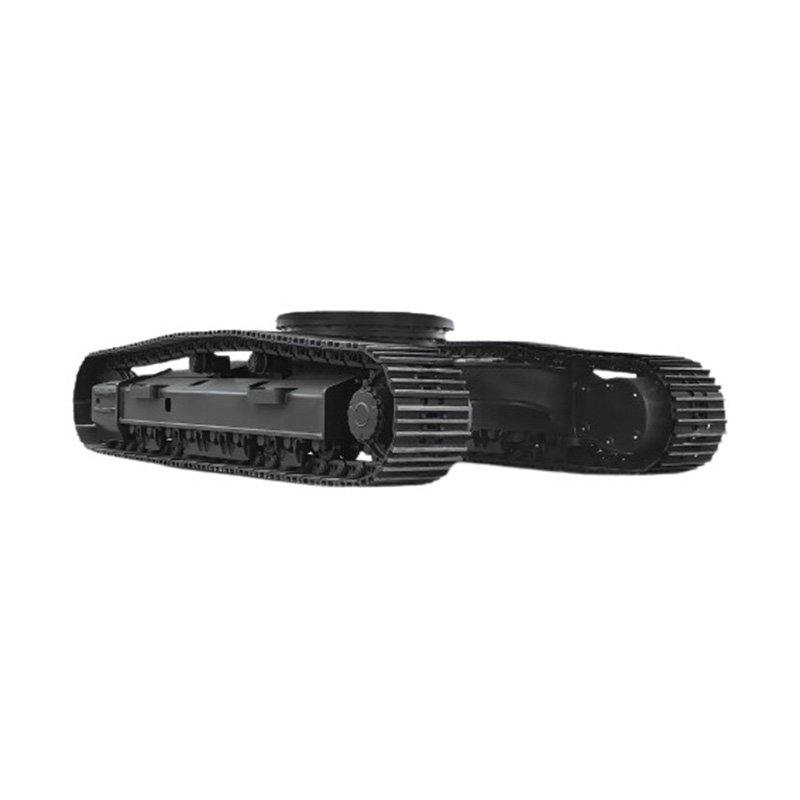

For Excavator Track Undercarriage Chassis System with Swing Platform (Turntable Structure)

Track Undercarriage System

Designed with mature heavy-duty track chassis frame. We have designs pitch from 72 to 228 models. These designs are verified and widely used by excavator models of Sany and Zoomlion. Our complete undercarriage systems for excavator are engineered and designed in many configurations to serve a wide range of applications.

+ Shipping Cost

Payment Safety Approved

Product Info

Product Apply To:	Excavator, Crane, Drilling / Piling Rig, Mobile Crusher & Screener, Rescue & Firefighting Robot etc.
Reference Part No.:	SDE125-05501 etc.
Product Customization:	Accept
Product Maker:	Shengde Machinery
Original Designer:	Shengde Machinery
Warranty:	1 year or 2500H

The tracks are optional could be rubber or steel.
Standard and heavy-duty chassis frame and components.
Special design features for forestry machines.
Weld-on and bolt-on attachment configurations.
Interface slewing rings designed according to customer requirements.
A wide range of hydraulic final drives is also available.

Delivery Info

Raw material:	35Mn, 40Mn, 50MnB alloy steel	Surface hardness:	56° – 62° HRc
Main technique:	Forging, casting, CNC processing, strength & running test	Monthly capacity:	1500 sets
Customization:	Accept OEM, ODM	Packaging material:	Carton, wooden case, pallet, container
Shipping port:	Xiamen, Ningbo, Shanghai or any port in China	Lead time:	24-72 hours for in-stock items, 45 days for bulk orders

Dimension Info

NO.	Model	Pitch	A	B	C	D
01	SDE125-05501	125	1840	2358	509	300
02	SDE125-06001	125	1905	2424	596	300
03	SDE140-07001	140	2100	2850	777	400
04	SDE140-07002	140	2404	2992	620	400
05	SDE140-07501	140	2544	3132	694	400
06	SDE140-09501	140	2553	3167	751	400
07	SDE140-12501	140	2699	3311	695	400
08	SDE140-13501	140	2721	3373	715	400
09	SDE160-20001	160	2584	3356	906	500
10	SDE160-20002	160	2646	3267	776	500
11	SDE160-20003	160	2820	3545	861	500
12	SDE160-20004	160	2820	3558	865	500
13	SDE160-20005	160	3000	3729	754	500
14	SDE160-20006	160	3300	4024	753	500
15	SDE160-20501	171	2935	3732	887	500
16	SDE160-20502	171	3280	4077	887	500
17	SDE160-26501	171	3800	4597	887	500
18	SDE190-24501	190	3166	3959	894	600
19	SDE190-30501	190	3258	4199	1051	600
20	SDE190-33501	190	3707	4517	938	600
21	SDE203-36501	203	3790	4651	1107	600
22	SDE203-37501	203	4284	5299	1032	650
23	SDE216-41501	216	3608	4590	1207	650
24	SDE216-48501	216	4374	5365	1059	650
25	SDE228-55001	228	4014	4757	886	700
26	SDE228-75001	228	4350	5093	886	700
27	SDE228-87001	228	4442	5532	1310	700
28	SDE228-98001	228	5490	6600	1387	700

Different Types of Track Undercarriage System

Related Keywords: Track Undercarriage System for Excavator

Part Name	Complete Track Undercarriage

Company Brief

Shengde Machinery is a renowned complete track undercarriage manufacturer from China. Since 1999, company has been focused on track undercarriage system customization for over 26 years. Company is the official supplier of original equipment manufacturers including Sany, Zoomlion and Hitachi Malaysia. The track undercarriage products are widely used by tracked machinery types (crawlers) including excavator, loader, dozer, crane, paver, crusher, drilling rig, road milling etc. Company owns full track chassis customization ability including research, design, prototype, manufacture, test, inspect and global delivery. Production capacity has reached 20,000 sets per year.
