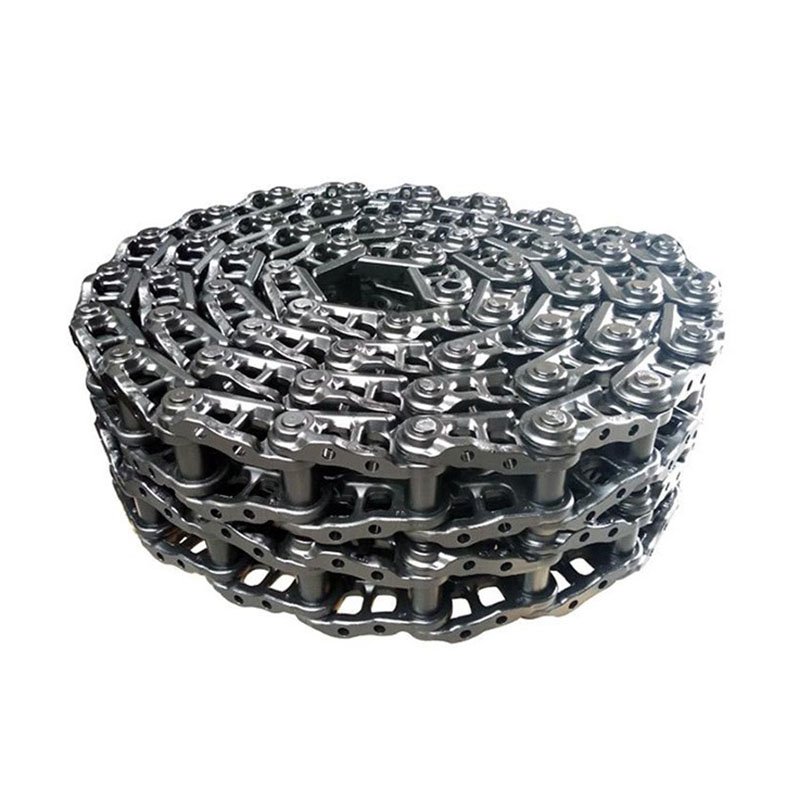

Track Chain Track Link Assy

For Komatsu PC150 PC180 PC200 Series Excavator Track Chain 20Y-32-00013, 20Y-32-00014, 20Y-32-00300, 20Y-32-K1170, 20Y-32-07040

The size of this track chain could be 500/600/700/800x190x45, or customized to fit Komatsu PC150, PC180, and PC200 series excavators. Supporting part numbers 20Y-32-00013, 20Y-32-00014, and 20Y-32-07040, it is manufactured by Shengde Machinery (a 26-year factory). Hardness reaches HRC 52-58. High-performance sealing prevents internal wear in abrasive conditions. Note: Please verify your wanted link pitch and number of links with us to ensure a 100% precision fit.

$1,999.00

+ Shipping Cost
- +
Payment Safety Approved

Product Brief

Product Apply To: Komatsu PC150, PC180, PC200 (PC200-5, PC200-6, PC200-8), PC210, PC228US, BR200 series, BR300S Excavator
Track Size: 500x190x45, 600x190x45, 700x190x45, 800x190x45
Reference Part No.: 20Y-32-00013, 20Y-32-00014, 20Y-32-00300, 20Y-32-K1170, 20Y-32-07040
Product Customization: Accept
Product Maker: Shengde Machinery
Warranty: 1 year or 2500H

Track chasis breakdown Steel track breakdown

Measure a Steel Track

for komatsu pc150 pc180 pc200 series excavator track chain 20y 32 00013, 20y 32 00014, 20y 32 00300, 20y 32 k1170, 20y 32 07040



Dimensions of Track Chain

Dimensions of a track chain

Dimensions of Shengde standard track link and applicable model (mm)

No. MODEL A B ΦS G H1 L1 L2 N1 U ΦX ΦY EXCHANGE MODEL
01 SD101A 101.6 / / 43 / / / 78.995 103 32 19 PC200-7
02 SD125A 125 / 11 56 / / 80 95 130 32 22 FT4314
03 SD125B 125 / 10.7 56 / / 80 95 130 32 21.9 /
04 SD135A 135 / 12.5 / / 99 72 101.15 141 41.15 24.2 PC60-5
05 SD135B 135 / 12.5 / / 99 72 104.09 136 39 22 DH55
06 SD135C 135 / 14.5 / / 110 / 112.15 150 41.15 24.2 HD250
07 SD135D 135 / 12.5 / / / / 107.69 140 35.15 22.2 R55
08 SD135E 135 46 12.5 / / / / 84.85 120 35.15 22.2 PC40-7
09 SD135F 135 46 12.5 56 65 / / / 139 35 22 AK171
10 SD140A 140 / 12.3 58 70 / / / 137 37.15 25.15 KT140
11 SD140C 140 / 12.3 51.6 78 / / / 139 42 27 VA1271
12 SD140D 140 / 12.3 58 70 / / / 139 37.18 25.18 FT1351B
13 SD154A 154 / 14.5 45 74 / / / 130 41.15 24.2 PC60-6
14 SD154B 154 55 14.5 54.6 80 / / / 155 46.45 30.5 EX60
15 SD154C 154.5 57 14.5 51 87 111.5 81.5 122.33 170 46.45 30.5 PC100-3
16 SD160A 160 / 14.8 65 / / / 130 158 45 30 FT4300
17 SD160B 160 / 14.5 65 / / / 130 158 45 30 FL6
18 SD171A 171 / 16.5 73 / / / 138.07 178 50.75 33.4 EX100,EX120,SH120
19 SD171B 171 / 16.5 86.2 / / / 165.2 212 53.7 36.5 R200
20 SD175A 175 / 16.5 7 / 102.4 86.4 117.9 166 46.45 30.5 PC100-5
21 SD175B 175 57 18.5 / / 158.4 122.4 169.85 216 55.3 38 HD700
22 SD1754A 175.4 / 18.5 / / 144.5 125.4 166.63 214 58.8 36.5 EX200-1
23 SD190A 190 / 18.5/20.5 / / 160.4 124.4 / / 59.3 38 PC200-315
24 SD190B 190 / 20.5 / / 155.6 119.6 / / 58.8 36.5 E200B
25 SD203A 203 / 20.3 100.4 116 178.4 138.4 / / 66.7 44.6 PC300-1
26 SD216A 216 / 22.5 100 116 178.4 140.4 / / 66.7 44.6 PC300-6

Some Track Pitches We Produced and The Applicable Models

101pitch 135pitch 140pitch 154pitch 160pitch 171pitch 175pitch 190pitch 203pitch 216pitch 228pitch
EX30 EX40 YC85 EX60 FT905 EX100 EX200-1 EX200-2/5 EX270 PC300-6 PC400-6
EX35 ZX55 FT1351 EX70 FT160 EX120 UH07-7 ZX200 EX300-1 PC350-6 ZX500
PC30 PC40-5 / EX90 / EX130 PC100-5 ZX210 PC300-3 EX300-5 SH450
/ PC40-7 / PC60-6 / E120B SY130 ZX240 PC300-5 ZX330 /
/ PC60-5 / PC75 / E312 SY150 PC200-3 E300B ZX350 /
/ E307 / PC100-3 / SK100 HD700 PC200-5 D60 EX400-5 /
/ E70 / SK60 / SK120 HD800 E200B D65 PC400-5 /
/ BE305.5 / SH70 / R110 HD900 E320 DH280 R350 /
/ DH55 / R80 / R130 D5 E322 DH300 R360 /
/ HD250 / D31 / HD450 E240 SK200 R290 DH450 /
/ R55 / / / SH120 MS180 SK220 R305 R450 /
/ R60 / / / YC135 SH280 SK250 SK300 E330 /
/ D20 / / / D4D / SH200 HD1250 SK350 /
/ SH60 / / / R200 / SY220 / / /
/ SH75 / / / SE210 / DH220 / / /
/ SSWE70 / / / / / R215 / / /
/ EC55 / / / / R225 / / /
/ EC210 / / /
Related Keywords: , , , , , , , , , ,
Machinery Brand

Machinery Type

Part Name

Company Brief

Shengde Machinery is a renowned complete track undercarriage manufacturer from China. Since 1999, company has been focused on track undercarriage system customization for over 26 years. Company is the official supplier of original equipment manufacturers including Sany, Zoomlion and Hitachi Malaysia. The track undercarriage products are widely used by tracked machinery types (crawlers) including excavator, loader, dozer, crane, paver, crusher, drilling rig, road milling etc. Company owns full track chassis customization ability including research, design, prototype, manufacture, test, inspect and global delivery. Production capacity has reached 20,000 sets per year.
