What materials do you use to ensure the durability of the undercarriage?

Quality starts with materials. We use high-strength 50MnB, 40Mn2 or 35MnB alloy steel for critical components. Specifically speaking, sprockets, idler shells and steel tracks are made of 35MnB. This type of steel provides a balance between wear resistance and tensile toughness. Roller shells are made of 50MnB to maximize the wear resistance. All key contact positions of the parts undergo rigorous heat treatment and deep induction hardening (HRC 52-58) to maximize structural integrity and wear resistance in harsh environments.

Can you customize a track system for our specific machine and terrain?

Absolutely. We specialize in custom solutions for load capacities from 0.5 to 120 tons. Our technical team optimizes the chassis design based on your equipment weight, hydraulic requirements, traveling speed and working conditions (e.g., abrasive rock, swampy mud, or steep slopes) to ensure 100% compatibility.

For Mobile Drilling Rigs Steel Track Undercarriage System (Single Side)

Track Undercarriage System

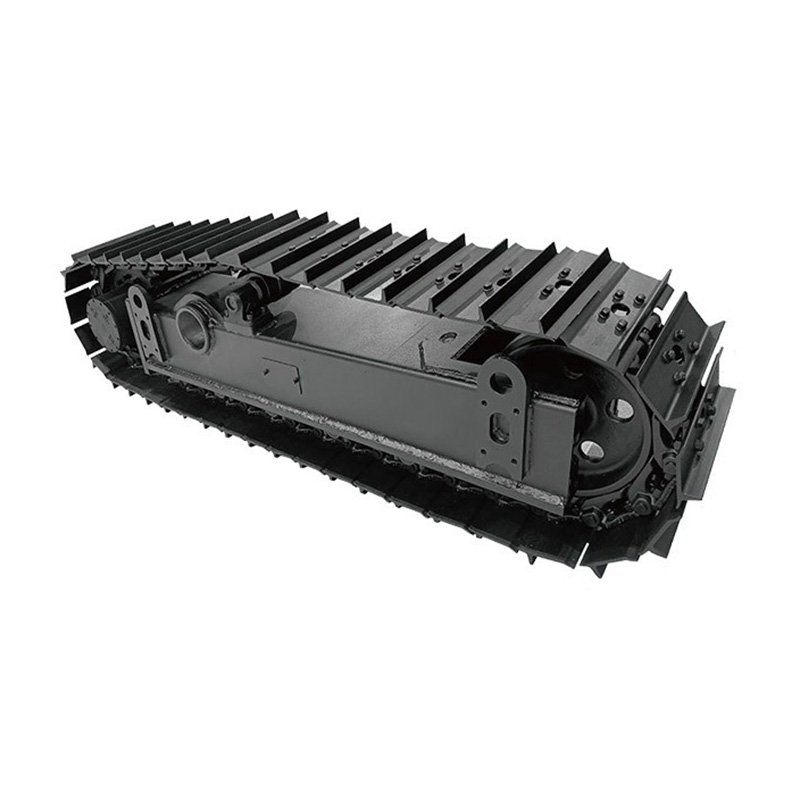

This steel track undercarriage is specifically designed with a structure and supporting system for mobile drilling rigs. Drilling operations place unique loads on drilling undercarriage frames. To meet this challenge, we engineered and designed heavy-duty frames based on years of experience in building drilling track undercarriage under various track sizes.

+ Shipping Cost

Payment Safety Approved

Product Info

Product Apply To:	Mobile Drilling Rigs
Reference Part No.:	SDD135-01006 etc.
Product Customization:	Accept
Product Maker:	Shengde Machinery
Product Designer:	Shengde Machinery
Warranty:	1 year or 2500H

Heavy-duty pivot joint steel frames with reinforcements in high-load areas.
Extra long wave profile heavy-duty chain guides.
Raised top roller position to ensure the necessary track chain clearance.
Final drives with mechanical disengagement to allow the quick relocation of the machine.
Mechanical, hydraulic, and gas tensioning systems.
Wide range of hydraulic final drives is also available.

Delivery Info

Raw material:	35Mn, 40Mn, 50MnB alloy steel	Surface hardness:	56° – 62° HRc
Main technique:	Forging, casting, CNC processing, strength & running test	Monthly capacity:	1500 sets
Customization:	Accept OEM, ODM	Packaging material:	Carton, wooden case, pallet, container
Shipping port:	Xiamen, Ningbo, Shanghai or any port in China	Lead time:	24-72 hours for in-stock items, 45 days for bulk orders

Different Types of Track Undercarriage System

Dimension of Track Undercarriage

Dimension of some pre-designed models for mobile drilling rigs

NO.	Model	Pitch	A	B	C	D
01	SDD101-00301	101	1358.5	883	485	250
02	SDD101-00401	101	1612.5	1137	485	250
03	SDD135-01006	135	2400	1584.7	576.8	260
04	SDD135-00602	135	2313.7	1755	570.6	300
05	SDD135-00603	135	2601.6	1957	746.5	300
06	SDD135-00604	135	1737	1180	574	250
07	SDD135-01005	135	3458	2871.6	578	250
08	SDD135-00607	135	2943.6	2299	746.5	300
09	SDD140-00801	140	3072	2489	608	400
10	SDD154-01004	154	3098	2460	638	330
11	SDD160-01801	160	4672	3948	735	400
12	SDD190-02701	190	4446	3650	925	600
13	SDD216-10001	216	6780	5765	1075	600

Part Name	Complete Track Undercarriage

Company Brief

Shengde Machinery is a renowned complete track undercarriage manufacturer from China. Since 1999, company has been focused on track undercarriage system customization for over 26 years. Company is the official supplier of original equipment manufacturers including Sany, Zoomlion and Hitachi Malaysia. The track undercarriage products are widely used by tracked machinery types (crawlers) including excavator, loader, dozer, crane, paver, crusher, drilling rig, road milling etc. Company owns full track chassis customization ability including research, design, prototype, manufacture, test, inspect and global delivery. Production capacity has reached 20,000 sets per year.
